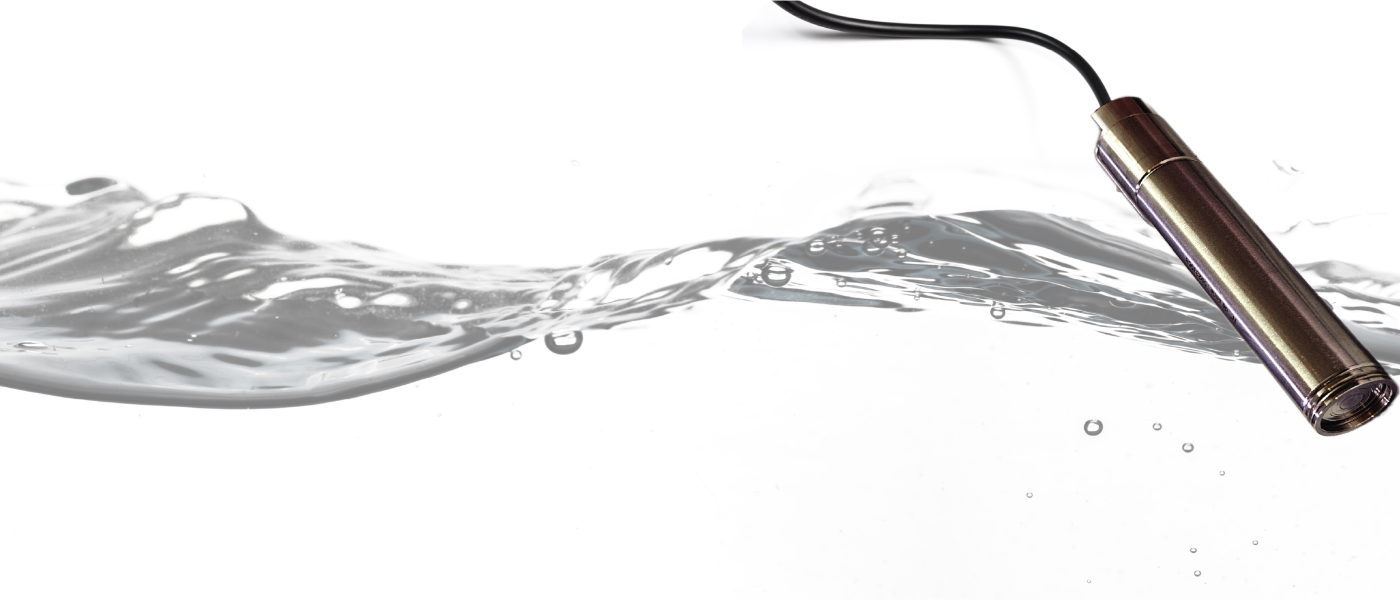

Precise water level monitoring is essential in many fields, such as water resource management, agriculture, environmental engineering and construction. To obtain reliable, real-time data, using a piezometric water level probe is essential. Level measurement is achieved by differential pressure measurement between the liquid surface and the position of the submerged transmitter. Pressure is converted into an electrical signal by piezoresistive technology and conditioned in a 4/20mA loop. Our range of hydrostatic level devices comes in several versions for use in water or in more aggressive liquids.
|
PIEZO ST |
PIEZO AS |
PIEZO HR |
PIEZO FOR |
|---|---|---|---|
from 1 to 500 m H2O
Measurement signal | from 2 to 20 m H2O
Measurement signal | from 2 to 200 m H2O
Measurement signal | from 10 to 100 m H2O
Measurement signal |
4/20 mA, 0/10v
Electrical characteristics | 4/20 mA, 0/10v
Electrical characteristics | 4/20 mA, 0/10v
Electrical characteristics | 4/20 mA, 0/10v
Electrical characteristics |
6 to 38 VDC
Consumption | 6 to 38 VDC
Consumption | 6 to 38 VDC
Consumption | Direct current 6 to 38 Volts
Consumption |
Signal in milliamps
Measurement cell | Signal in milliamps
Measurement cell | Signal in milliamps
Measurement cell | Signal in milliamps
Measurement cell |
Hastelloy C276
Hysteresis | Stainless steel 316L
Hysteresis | Hastelloy C276
Hysteresis | Stainless steel 316L
Hysteresis |
0.05%
Thermal compensation range | 0.05%
Thermal compensation range | 0.05%
Thermal compensation range | 0.05%
Thermal compensation range |
from 0 to 40°C / -10 to 70°C (option)
Average compensation range | from 0 to 40°C / -10 to 70°C (option)
Average compensation range | from 0 to 40°C
Average compensation range | from 0 to 40°C / -10 to 70°C (option)
Average compensation range |
from -30 to 40 °C
Housing body | from -30 to 40 °C
Housing body | from -30 to 40 °C
Housing body | from -30 to 40 °C
Housing body |
Stainless steel AISI 316 L
Cable | Stainless steel AISI 316 L
Cable | Hastelloy C276
Cable | Stainless steel AISI 316 L
Cable |
PU, ETFE, PTFE
Probe weight | PU, ETFE, PTFE
Probe weight | ETFE 2x0.22 mm²
Probe weight | PU, ETFE, PTFE
Probe weight |
400 g
Dimensions | 370 g
Dimensions | 400 g
Dimensions | 310 g
Dimensions |
| Height: 156 mm - Ø 25 mm | Height: 130 mm - Ø 25 mm | Height: 159 mm - Ø 25 mm | Height: 184 mm - Ø 16 mm |
|

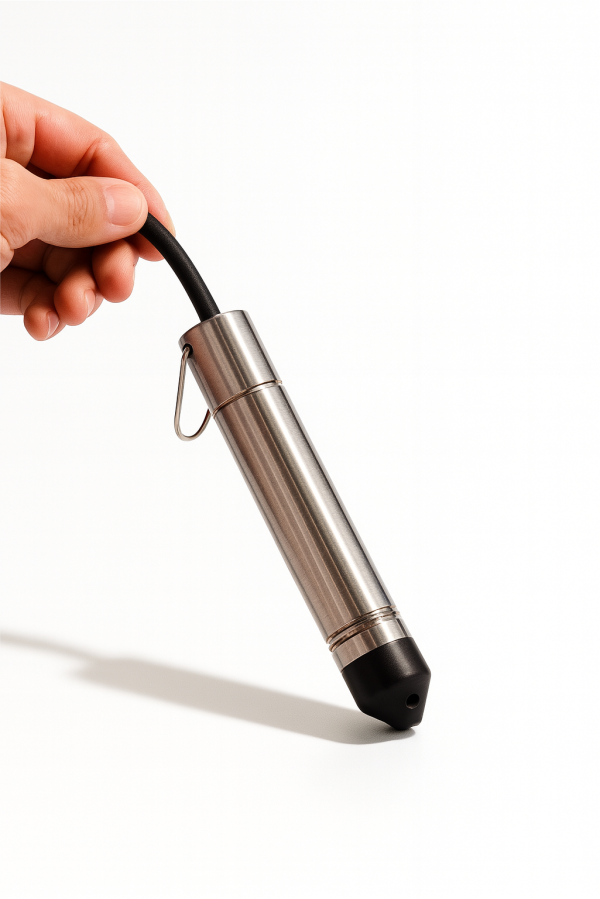

The PIEZO ST piezometric probe (Clean water) is a hydrostatic probe for controlling liquid levels in tanks, rivers or groundwater.
PIEZO ST piezometric probe

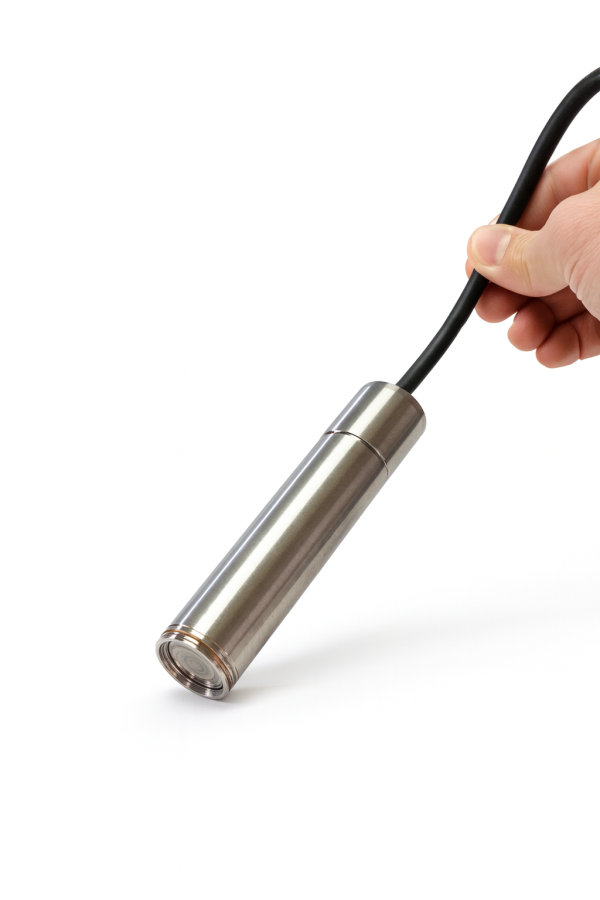

The PIEZO AS piezometric probe (Wastewater) is a hydrostatic probe for monitoring wastewater and aggressive liquid levels.
PIEZO AS piezometric probe

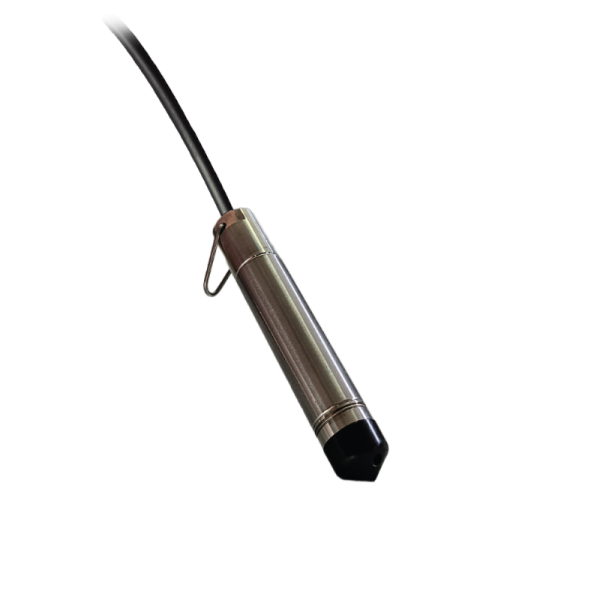

The PIEZO HR piezometric probe (Aggressive liquids) is a hydrostatic probe for monitoring aggressive and/or corrosive liquid levels.
PIEZO HR piezometric probe

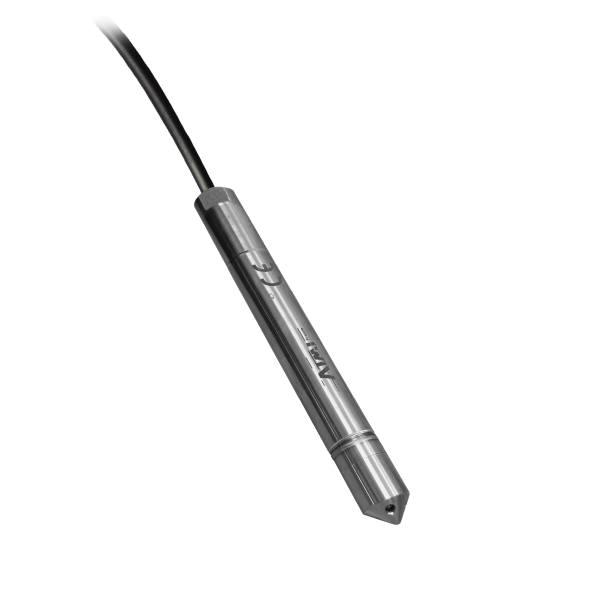

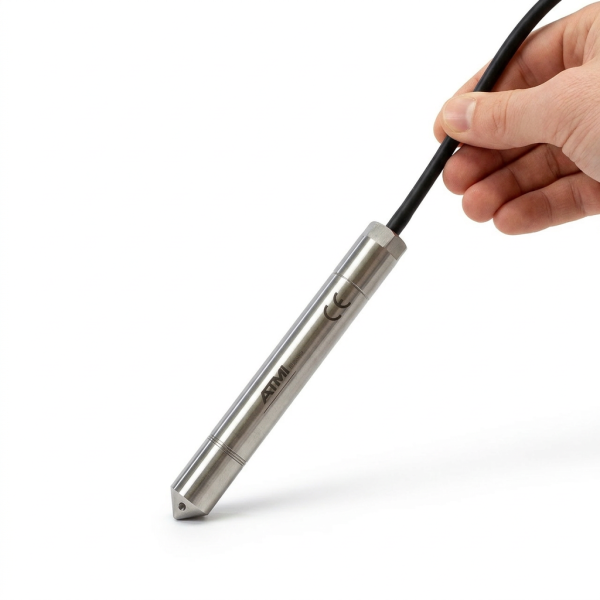

The PIEZO FOR piezometric probe (Borehole water) is a hydrostatic probe for monitoring borehole levels.
PIEZO FOR piezometric probe
