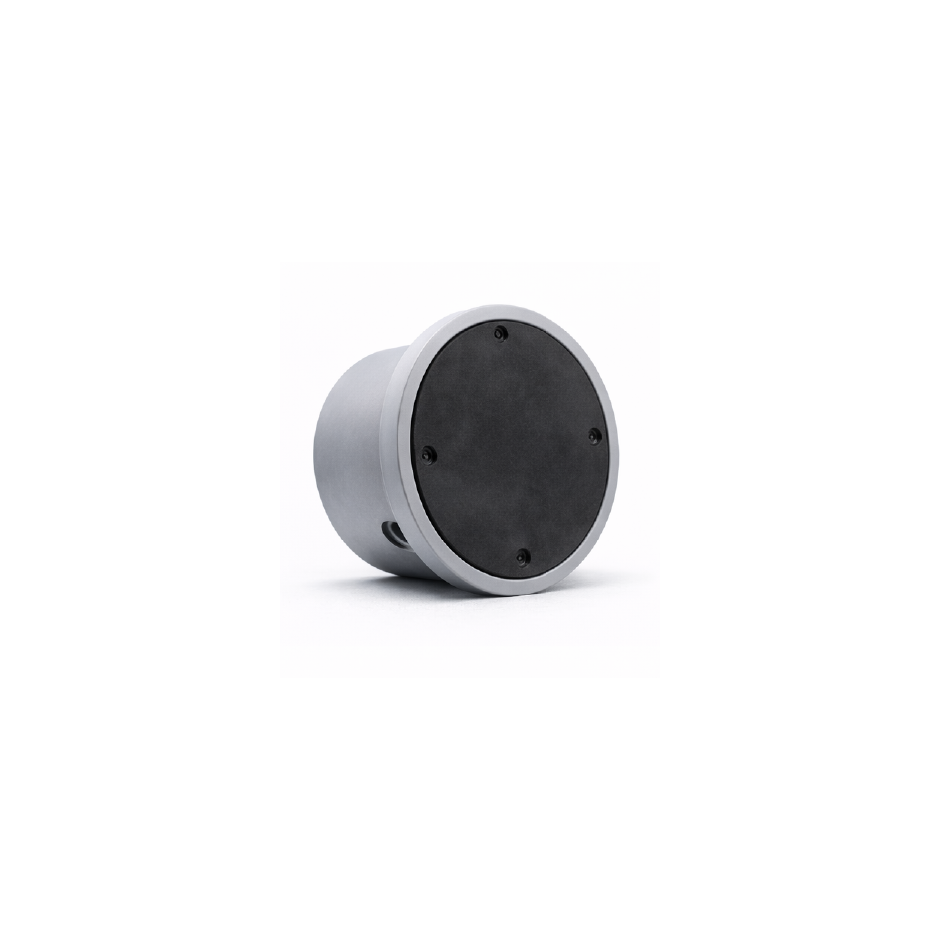

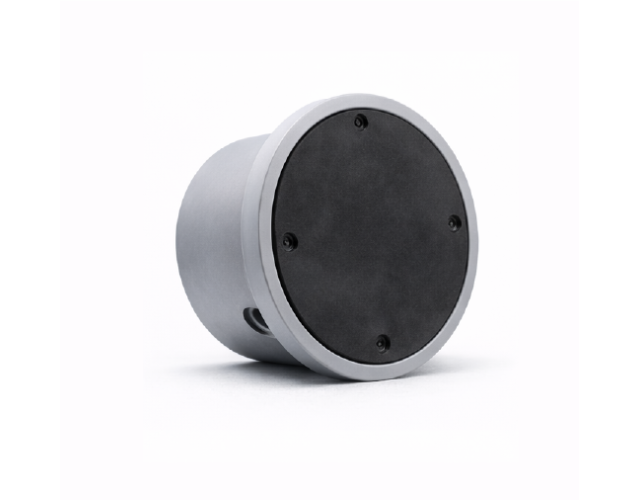

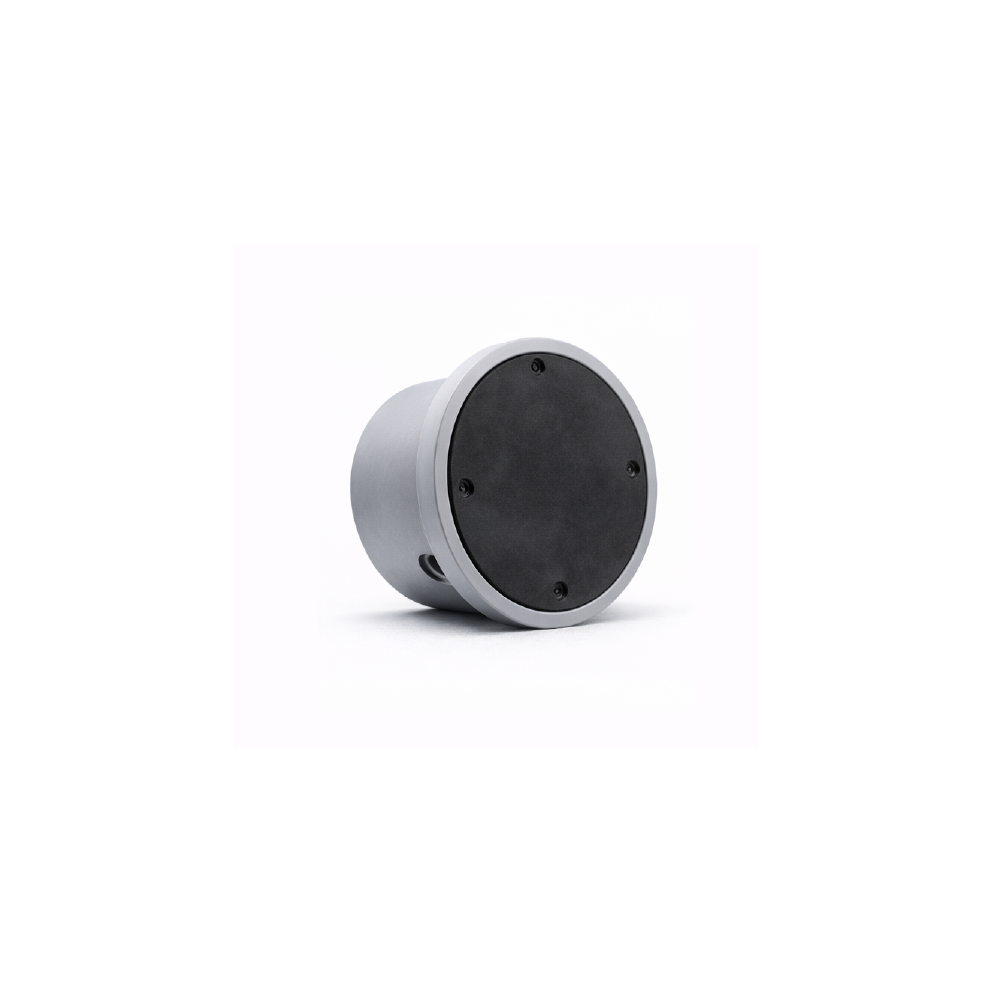

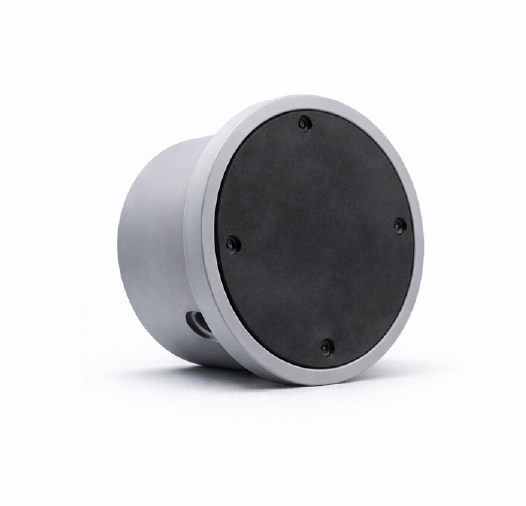

The SOLIBA MS is a compact diaphragm level detector, designed for maximum and minimum level control of bulk materials in silos, tanks and storage facilities. It also enables flow management and obstruction detection in tubes, pipes or conveyors.
This device is equipped with a diaphragm specifically adapted to dusty, granulated or sandy bulk materials, such as dust, flour, cereals, sand or plastic granules. It is recommended for materials with a bulk density between 0.3 and 1 t/m3 and low viscosity.
For optimal operation, it is important that the material pressure on the diaphragm is sufficient to allow its return to the initial position when it is no longer covered with product.
Download this documentation and keep the most important information at your fingertips.
pdf : 933.60 KB
|
|
Master your installation levels by pressure

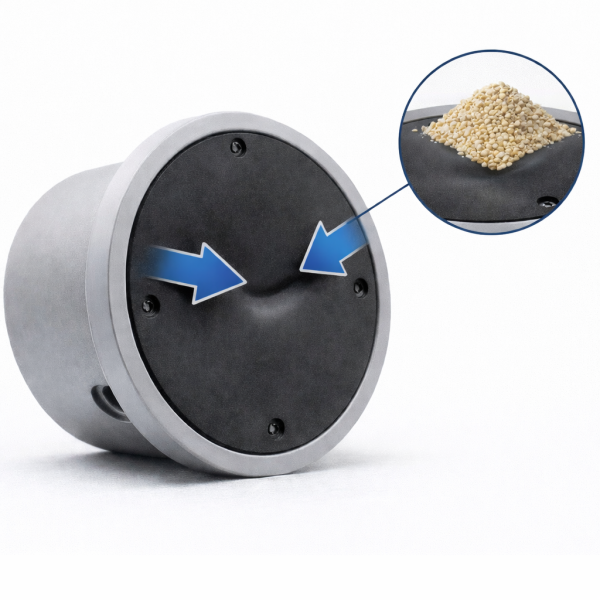

Detection results from the pressure exerted by the bulk material on the diaphragm, which forces it to retract and reverses the switch position. The signal thus generated then activates an electrical contact, which sends a stop or control signal to the automation system. The SOLIBA MS is equipped with a spring adjustment system to adjust sensitivity. Tightening the adjustment nut decreases sensitivity and increases the tension exerted on the material to activate the microswitch.
|
In outdoor or humid areas, the electrical connection of the float level switch must be waterproof and properly insulated in a hermetic box, preventing water or other contaminants from entering the cable. This prevents water infiltration that could compromise the safety of electrical connections and the float's lifespan. The electrical junction box should never be placed inside the tank. The cable and its capillary can be extended using standard signal cable. We equip our float switches with the cable length you require to avoid connections that would impair their operation. |
The SOLIBA MS provides a simple and reliable mechanical solution to secure your installations compared to other types of equipment such as vibrating probes, capacitive probes, ultrasonic, radar, etc.

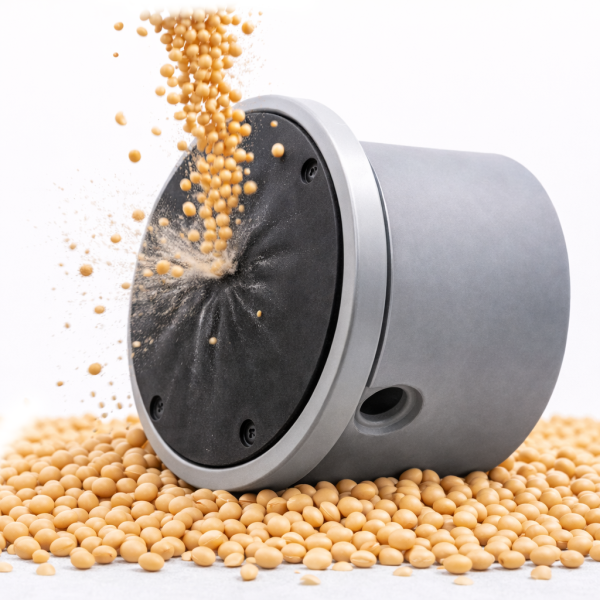

The SOLIBA MS is specially designed to withstand the most demanding conditions of bulk storage environments. During filling phases, grain fall can generate significant abrasion at the impact point.
To meet these constraints, the detector is equipped with a high-resistance NBR diaphragm, a material recognized for its exceptional resistance to wear, shocks and mechanical stress.
The SOLIBA MS thus offers a durable, reliable solution adapted to abrasive industrial environments, without compromising on performance.

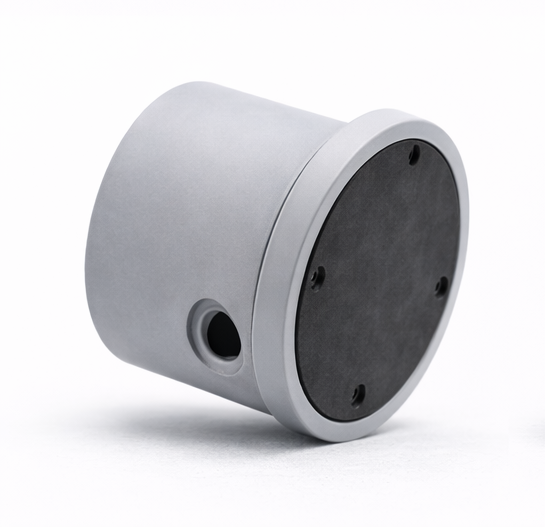

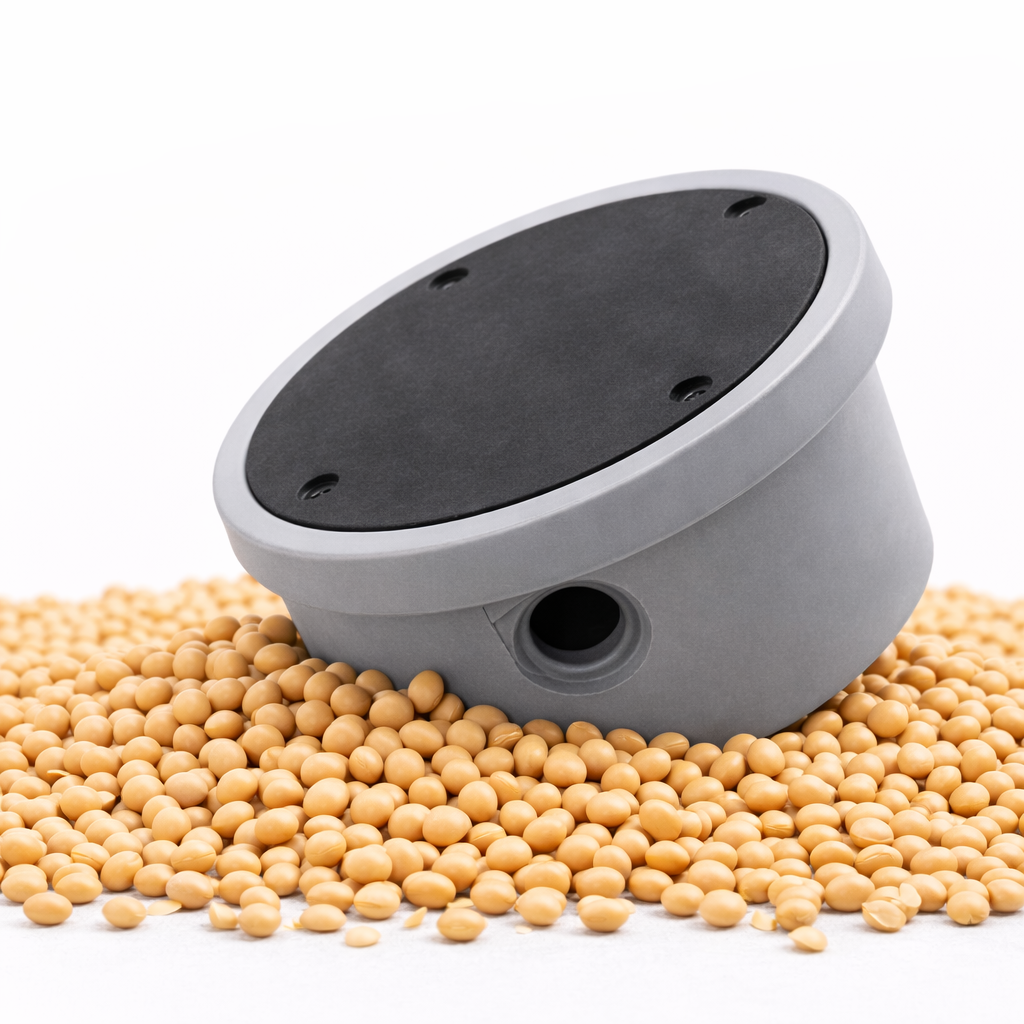

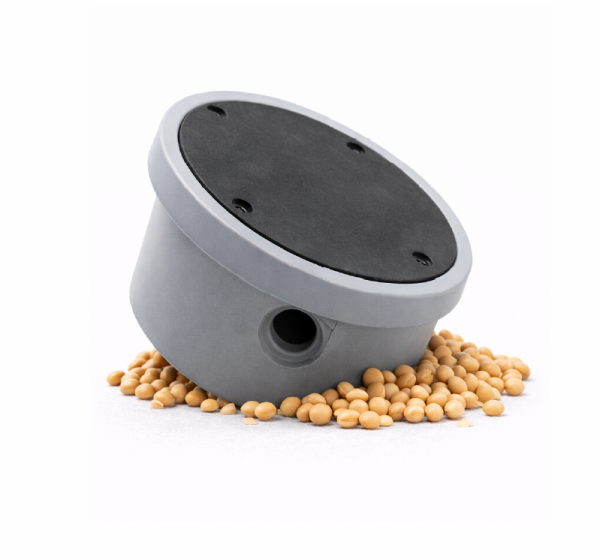

Thanks to its perfectly smooth shape, the detector prevents grain accumulation on the diaphragm during detection phases. This specific design promotes natural product flow and prevents any deposit formation that could impair measurement.
This geometry ensures excellent diaphragm position stability, guaranteeing precise, reliable and repeatable detection over time, even in heavily loaded granular product environments.

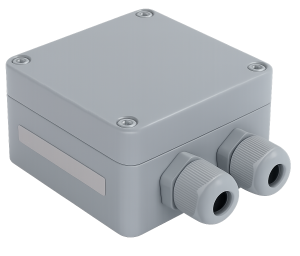

Level control relay with alarm.
