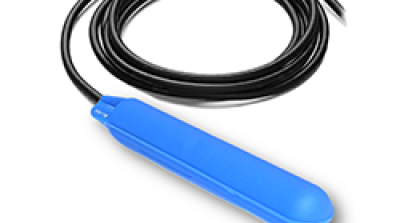

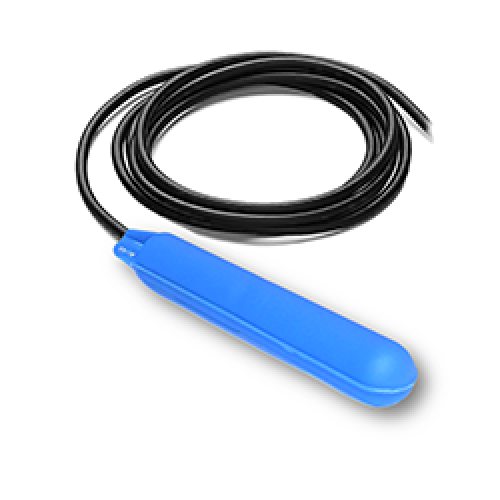

TUBA 1 small float switch applications

The TUBA 1" float level switch is a small diameter tubular float that has been designed to fit tanks and cisterns having restriced access.

The TUBA 1" float level switch is used a wide range of applications:

• Clear liquids, clean liquids, rain water
• Slightly aggressive liquids: oils, mud, fuel, paint, etc.
• Level control of multiple pumps
• Emptying / Filling function Overflow or dry-running protection
• High / low level alarm

Its small 1" diameter allows it to pass through the narrow openings usually found on the side walls of tanks. As the liquid level reaches the float, the mechanical switch inside will tilt, thus closing or opening a circuit connected to an electrical panel. Thanks to its +/-20º switching angle, the TUBA float level switch ensures a very precise level measurement.

To get more information about TUBA 1" small float switch, download the following datasheet:
