Liquid level control

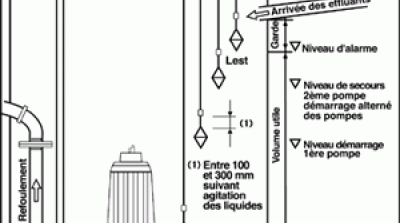

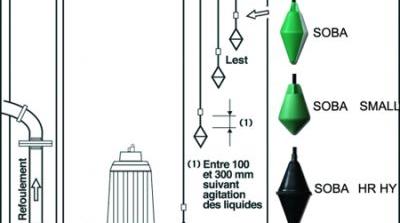

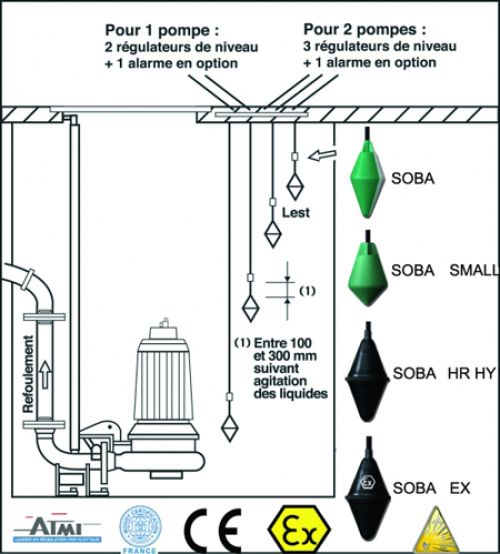

For control with one or more pumps, the level regulator SOBA is a float with external ballast omnidirectional float level switch tilting under liquid pressure, closing or opening a circuit connected to a control panel.
Simply place the level regulators SOBA at the desired high and low levels without level differential limitation, to obtain pump control for example.
A third level regulator SOBA placed even higher allows connection of an audible or visual alarm.
Discover ATMI level regulators
- The level regulator SOBA S Speed is perfect for level control of wastewater and loaded water in small retention tanks.
- The level regulator SOBA Small allows level control of clear water and wastewater and as high alarm for these networks.
- The level regulator SOBA can be used in pairs with another float of the same type to control minimum and maximum tank levels.
- The level regulator SOBA HR HY is suitable for level control of aggressive chemical liquids and hydrocarbons.
- The level regulator SOBA EX is an ATEX certification float level switch allowing level control of liquids in explosive risk areas classified 0, 1, 2 (gas) and 20, 21, 22 (dust).
- The level regulator SOBA EP ACS certification allows level control of drinking water for human consumption.
For a second pump, another float at the desired level will trigger its start, the lower device is common to all pumps. This is the simplest, most economical and most widespread control system.
Millions of SOBA level regulators frequently called "float level switches" have been operating worldwide for over 35 years.
